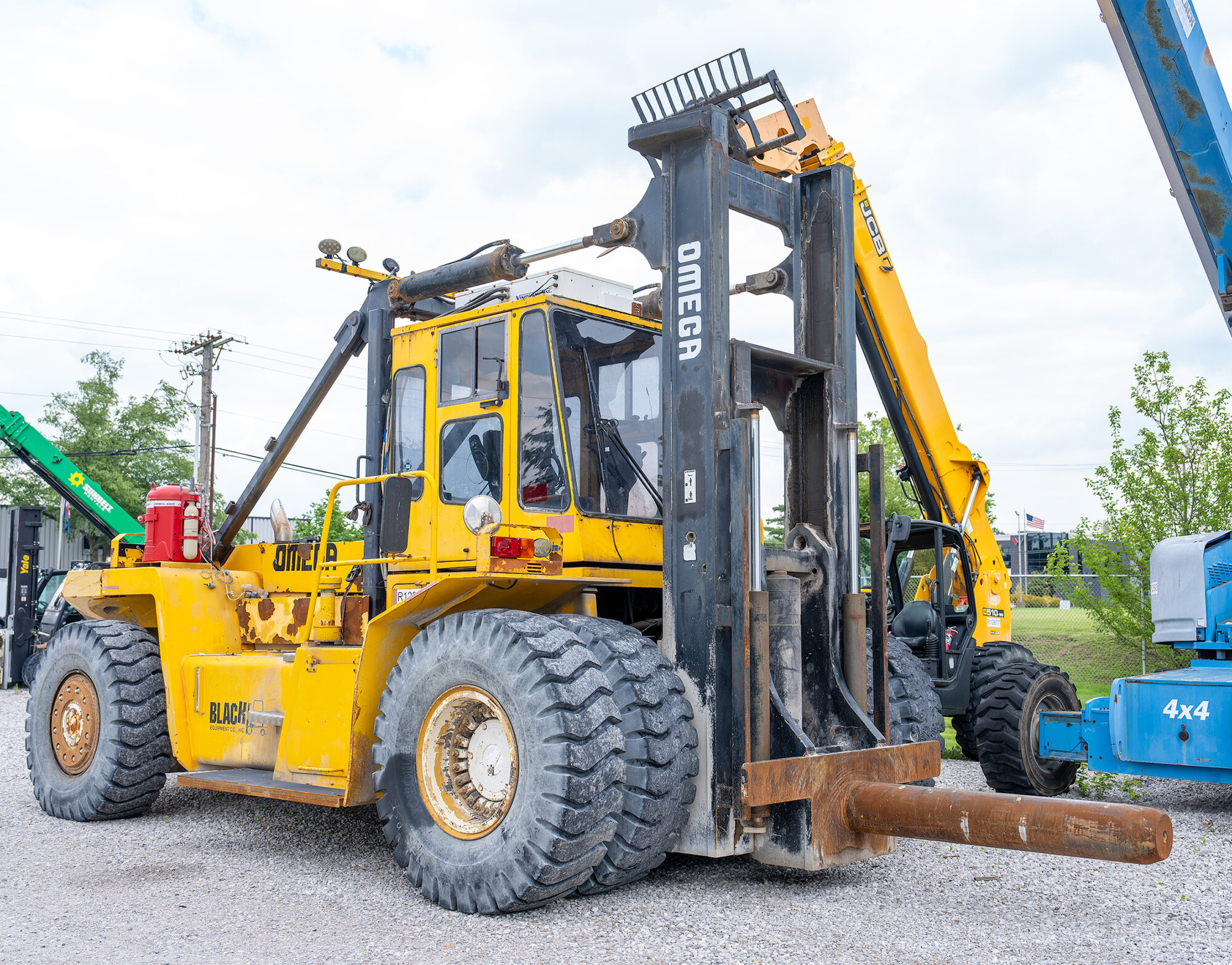

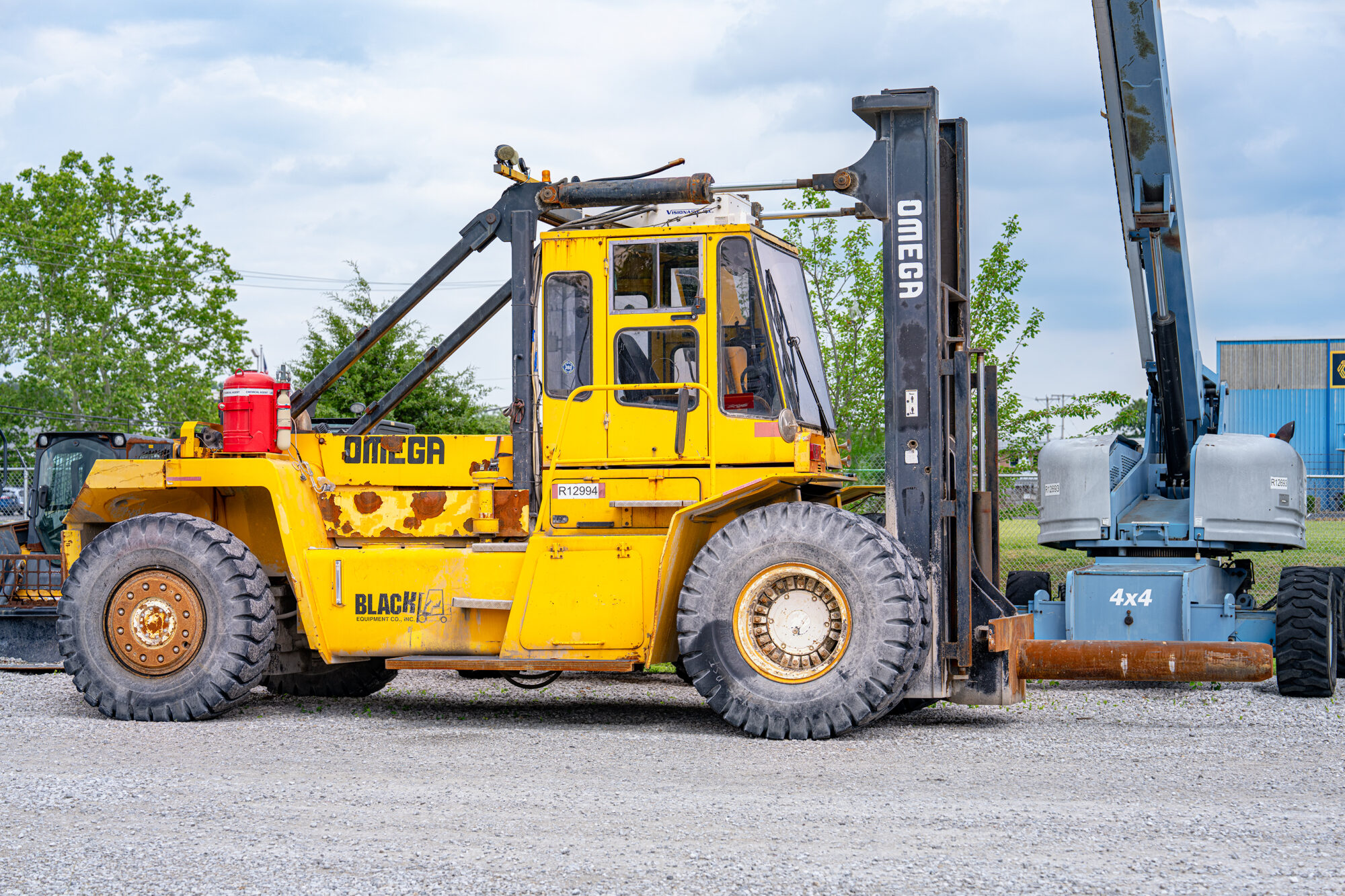

Commonly used to move large metal coils.

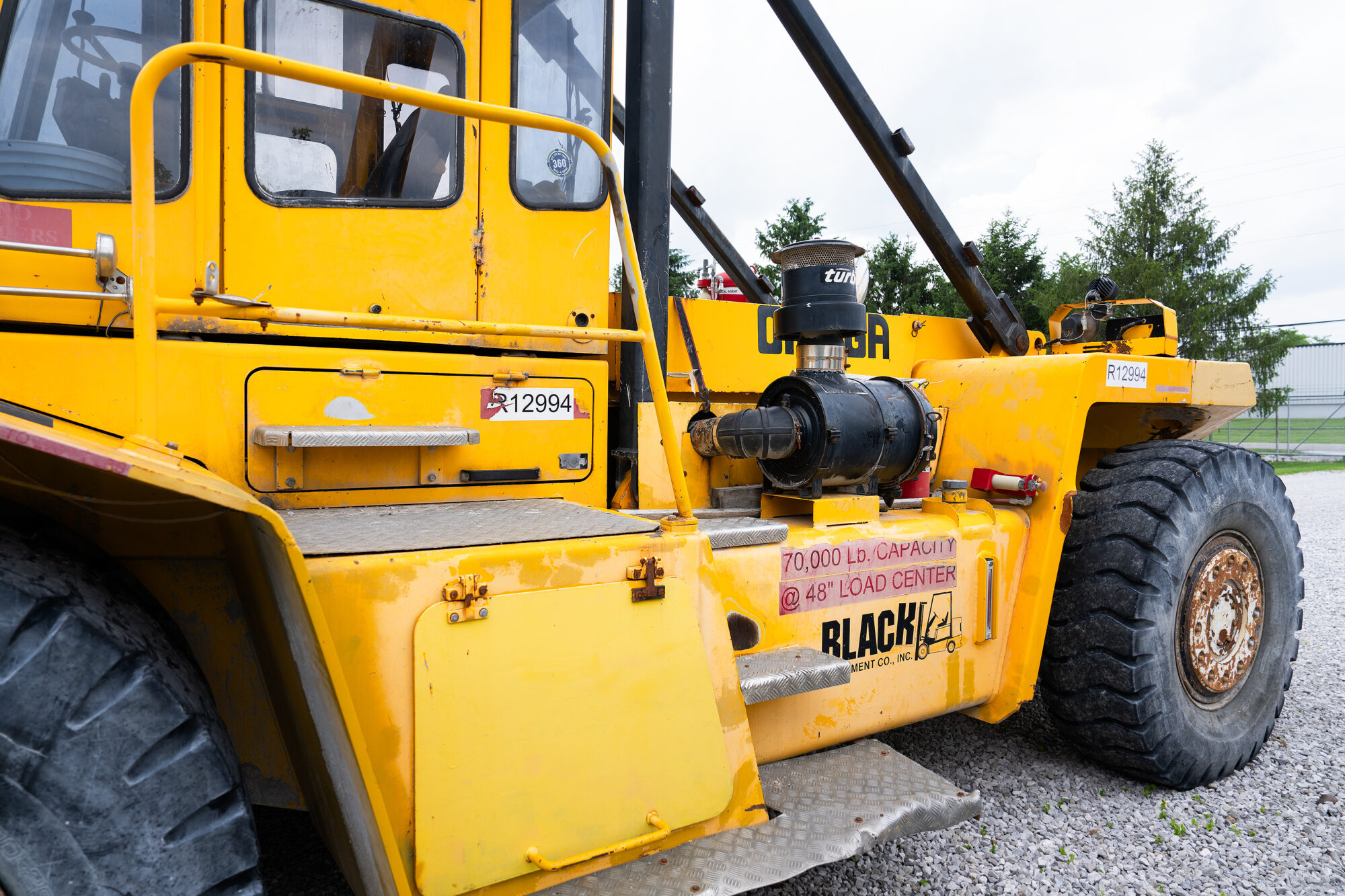

• NOMINAL CAPACITY: 70,000 lbs. @ 48in. Load Center
• MANUFACTURED: Australian designed and manufactured in Hornsby NSW
• ENGINE:
  • Cummins QSB8.3, C230, 6 Cyl, Turbo-Charged & air cooled.
    Rated 171kW@2200RPM. Comply to EC Tier3. HIGH POWER
    Engine protection system & Audio visual warning systems
    Heavy duty Air / Pre Cleaner with safety element & indicator
• TRANSMISSION:
  • Dana “TE17” series power-shift automatic transmission
    3 speeds forward and 3 speeds reverse
    APC200 fully automatic electronic shift control provides
    • Smooth Shift automatic shift protection
    • Fwd & Rev shift lock out
    • Transmission de-ration for protection
• DRIVE AXLE: Kessler Heavy duty drive axle with planetary drive reductions and oil cooled wet disc brakes for optimum performance.
• BRAKES:
  • Oil cooled wet disc brakes for optimum performance.
  • Accumulator protection in event of engine shut down
  • Spring Applied hydraulic pressure release disc type park brake
• STEERING: Omega designed heavy duty steer axle incorporating:
  • Fixed draglinks for minimum maintenance
  • Wheel nut protection with one piece rim mounting flange
  • One piece rim clamping for steer wheels
  • Centralized lubrication for oscillation points
• WHEELS & TIRES:
  • 1600 x 25 x 32 Ply Tires, Dual drive front.
  • 1600 x 25 x 32 Ply Tires, Single steer
  • With Solid Core

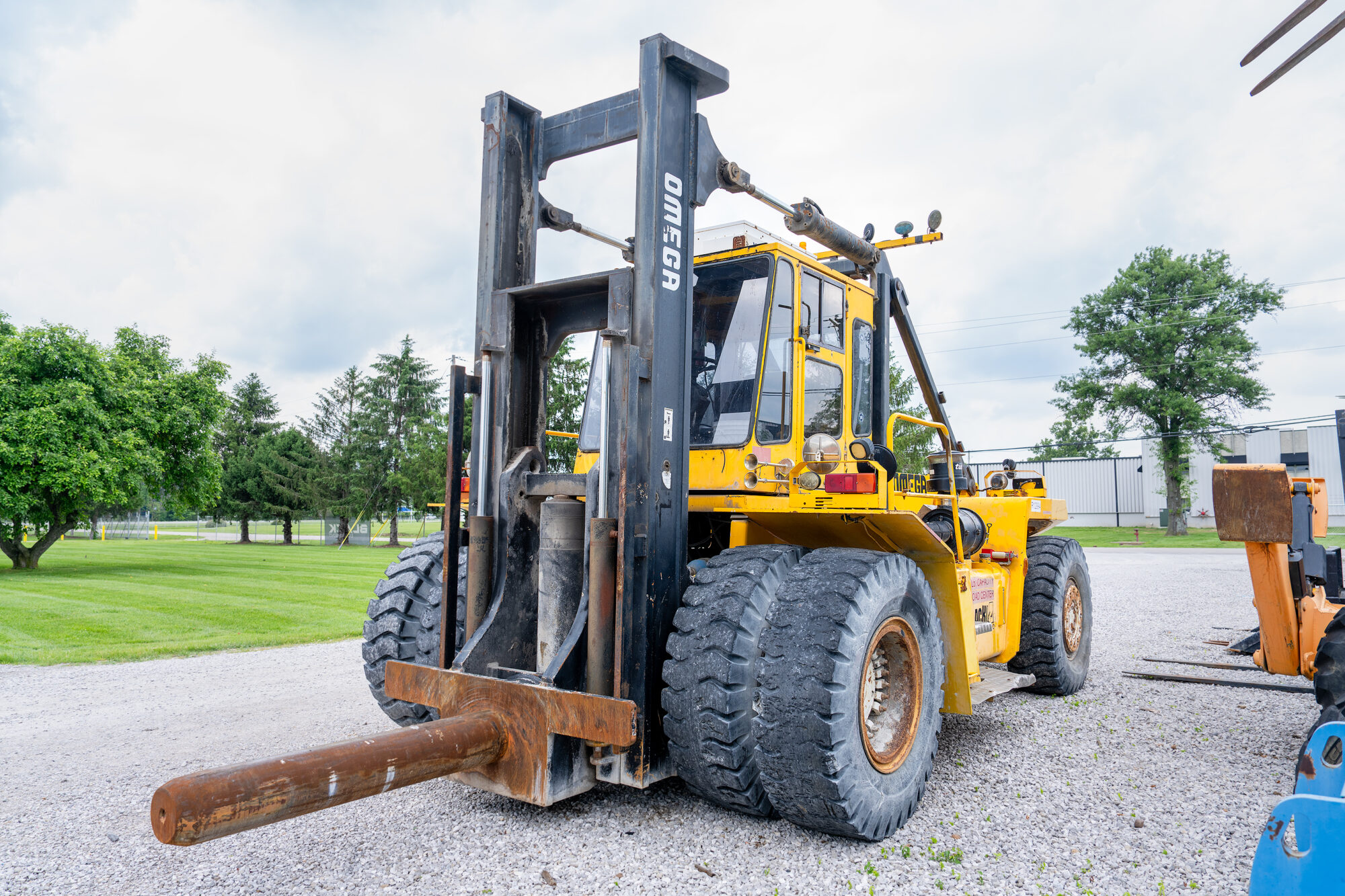

• UPRIGHT & COIL:
  • 118 inches in MFH (Maximum Fork Height – Coil Ram)
  • 164 inches OAHL (Overall Mast Height with Forks Lowered)
  • 72 inches in Free Lift (How high the carriage can go before the mast begins to raise)
  • Centralized lube on four upright pivot points

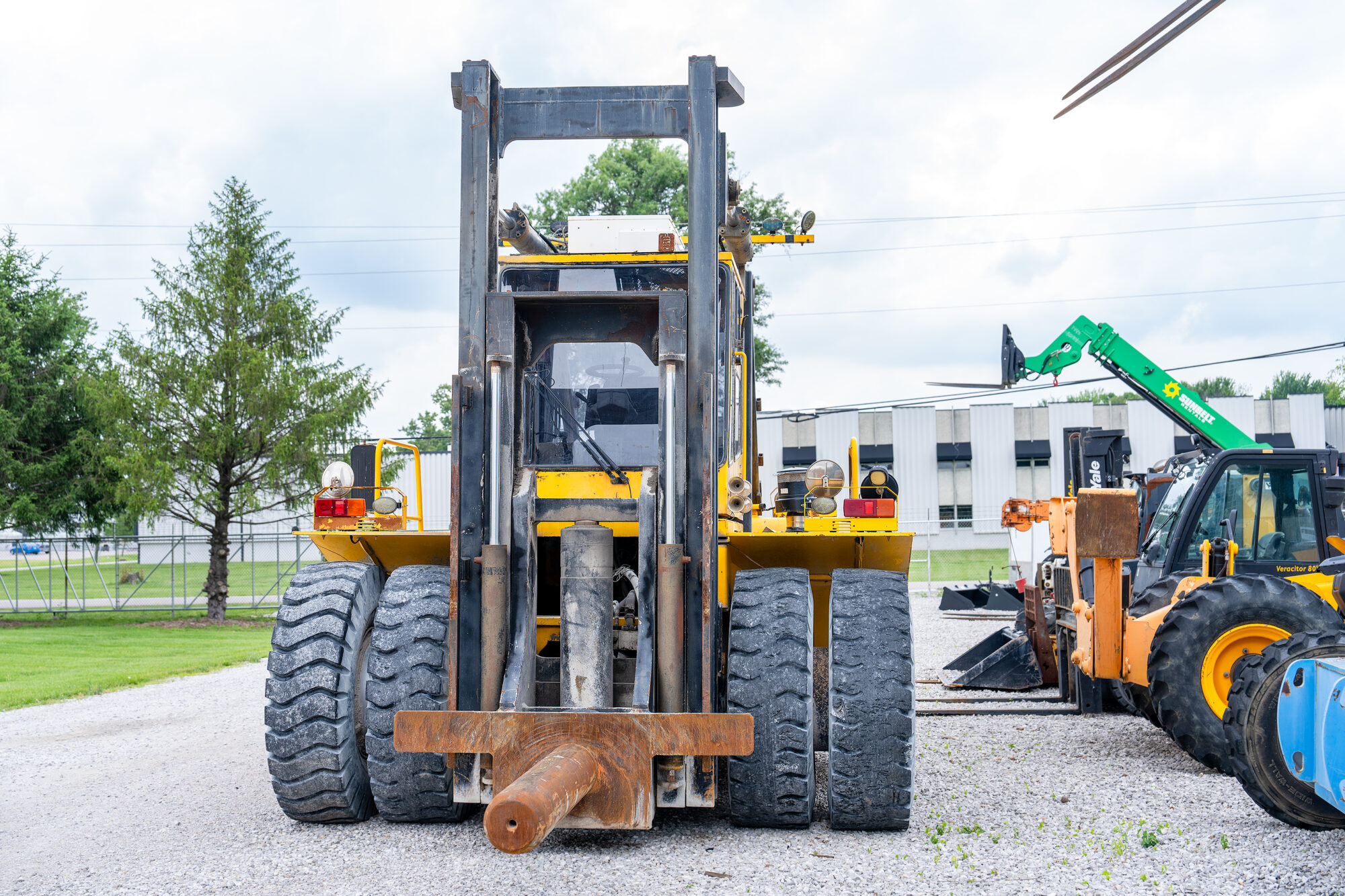

  • Coil Probe
• CARRIAGE: NA – Integrally mounted Coil Ram

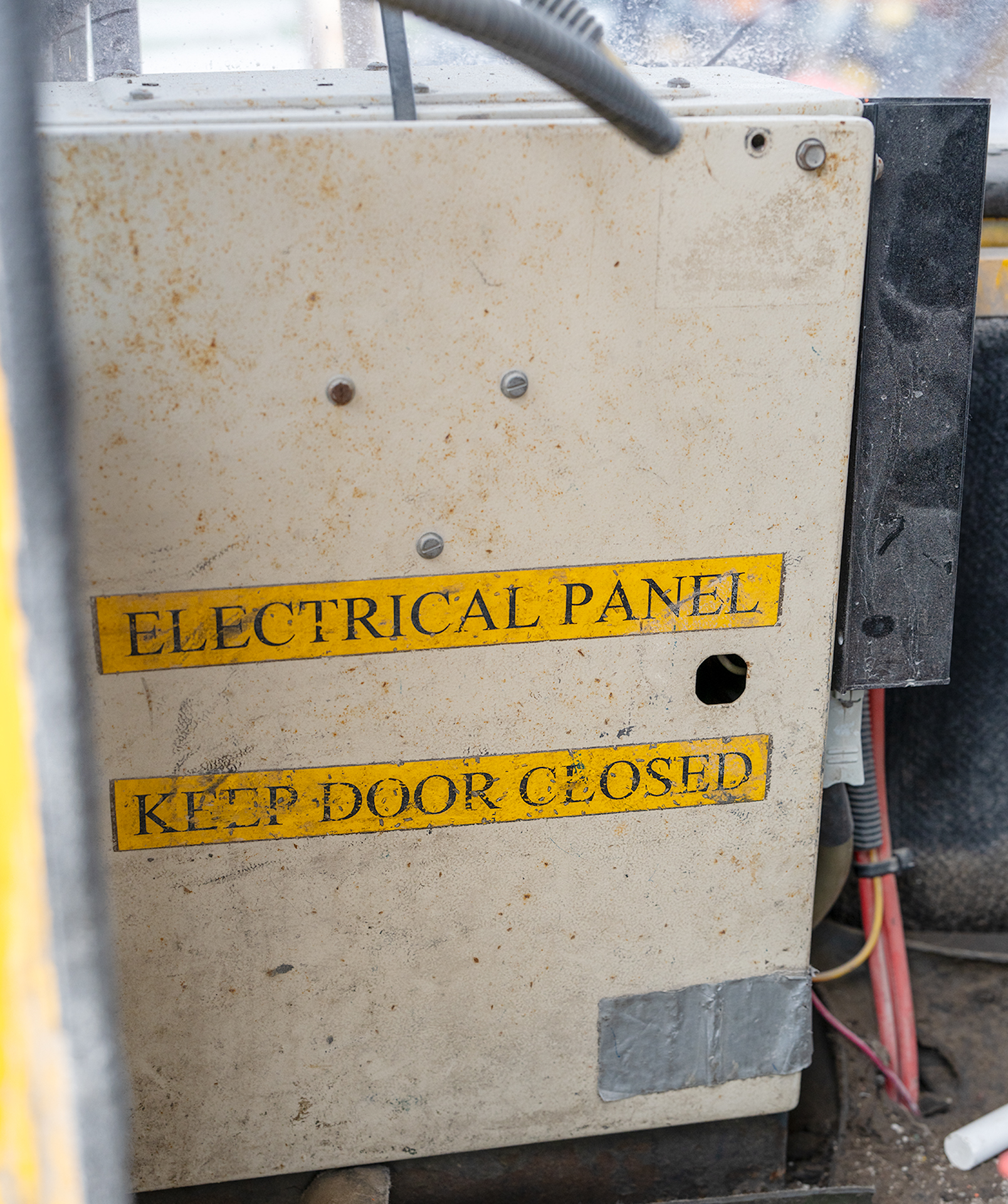

• ELECTRICAL SYSTEM:
  • Push button reset circuit breaker protection
  • 24 volt system for optimum performance
  • Harnesses in protective conduits with color coded identification

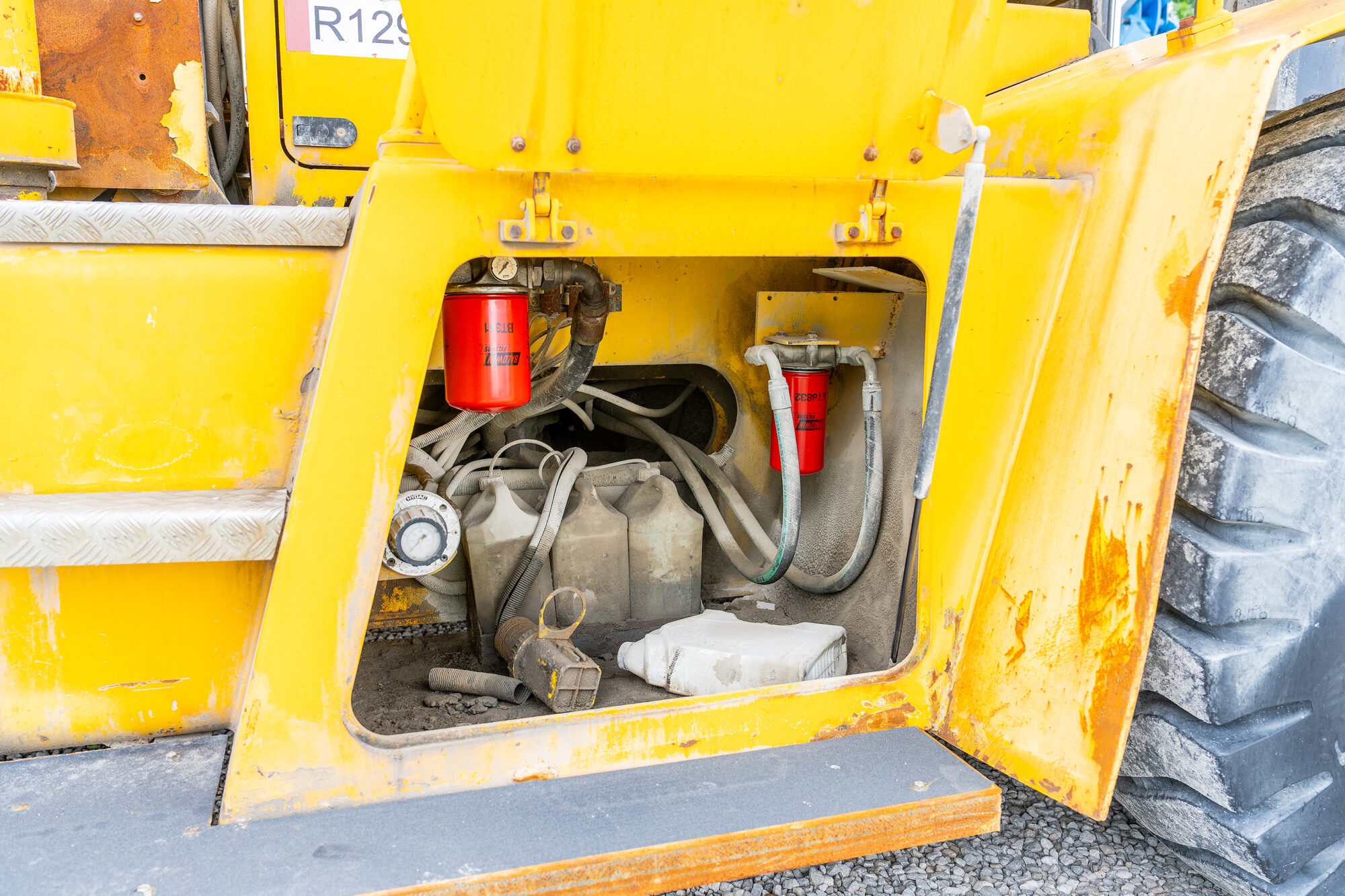

• HYDRAULIC SYSTEM:
  • Pilot operated system for precision control
  • Accumulator protection for lift circuit

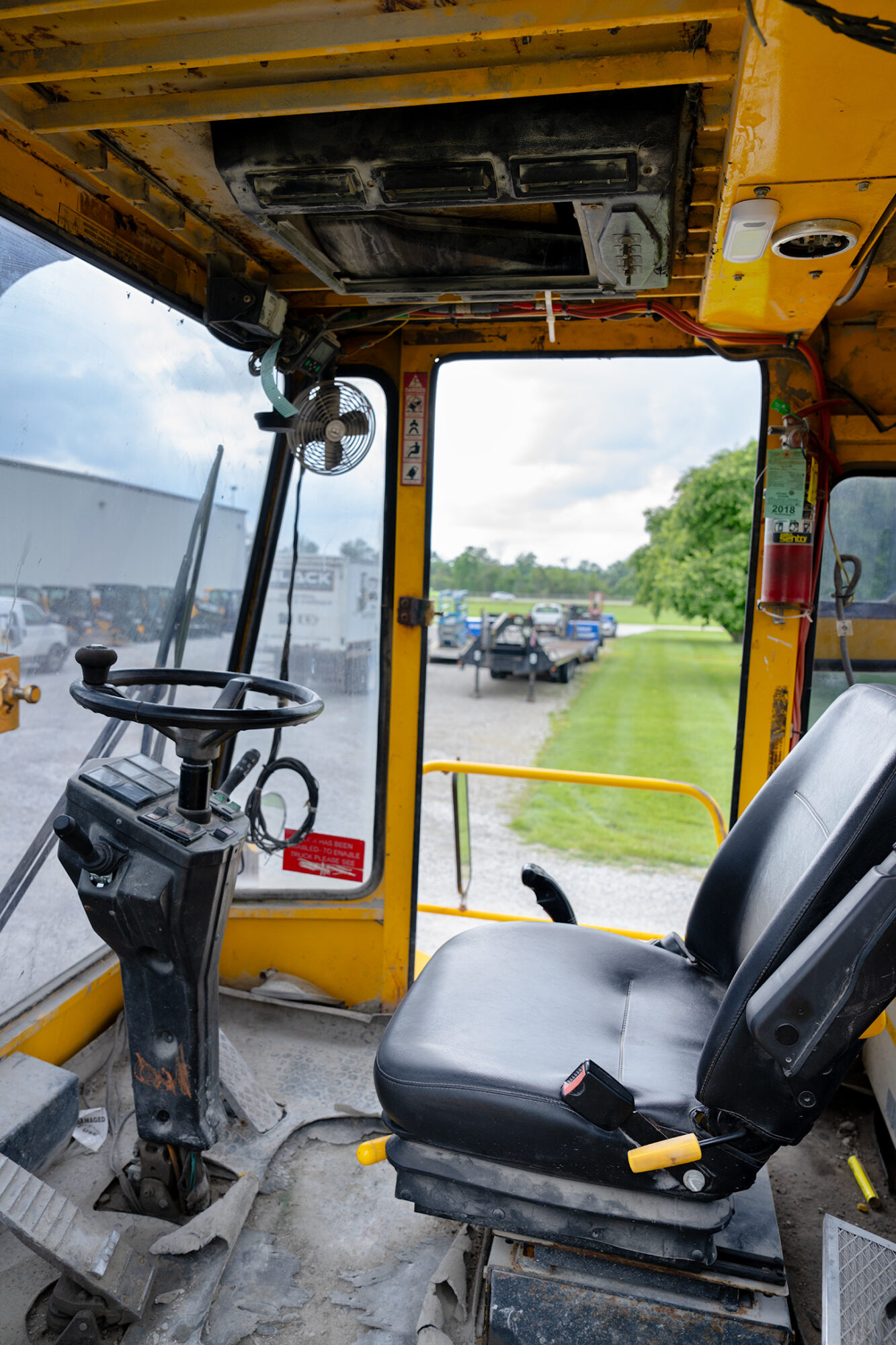

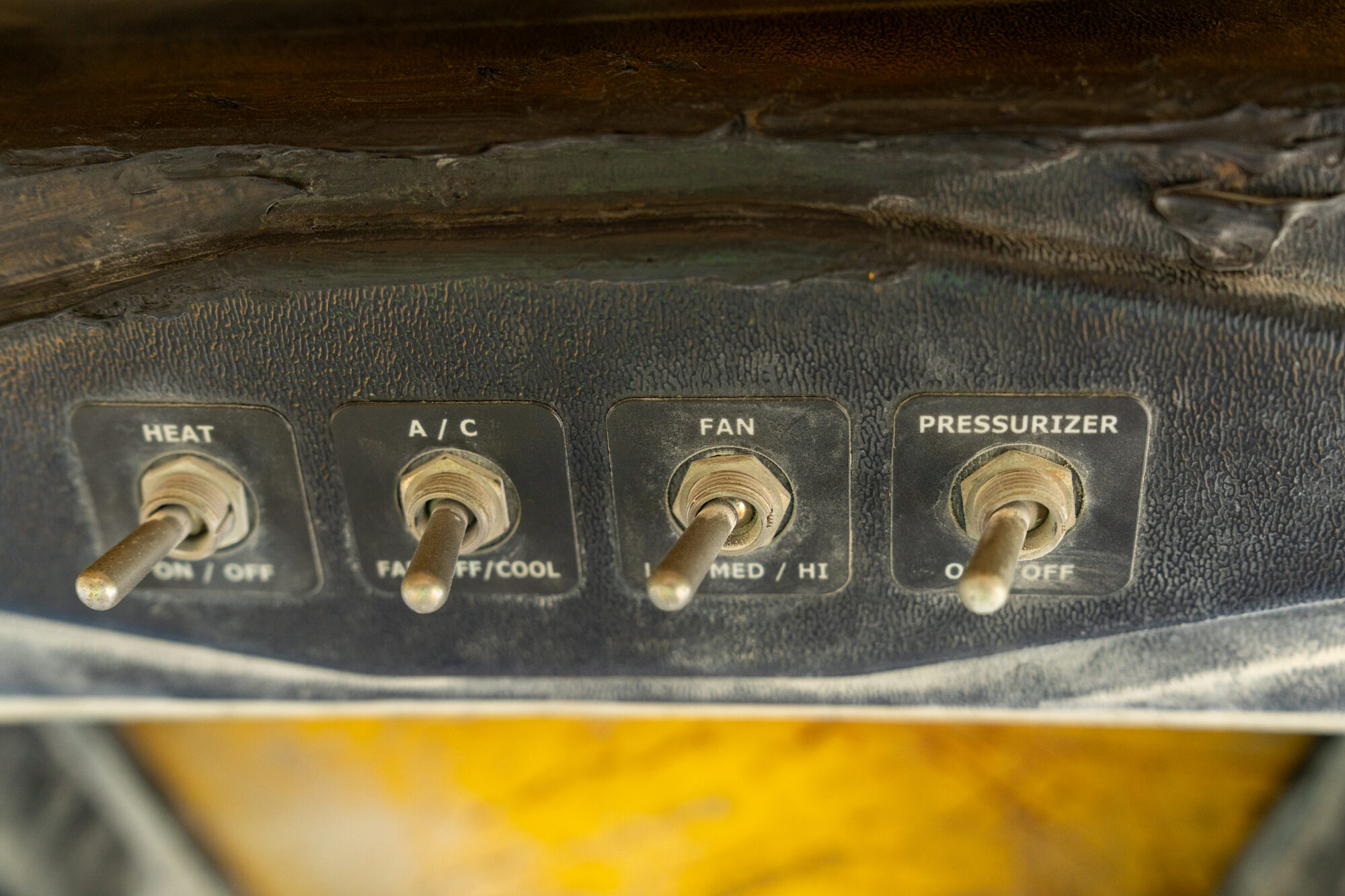

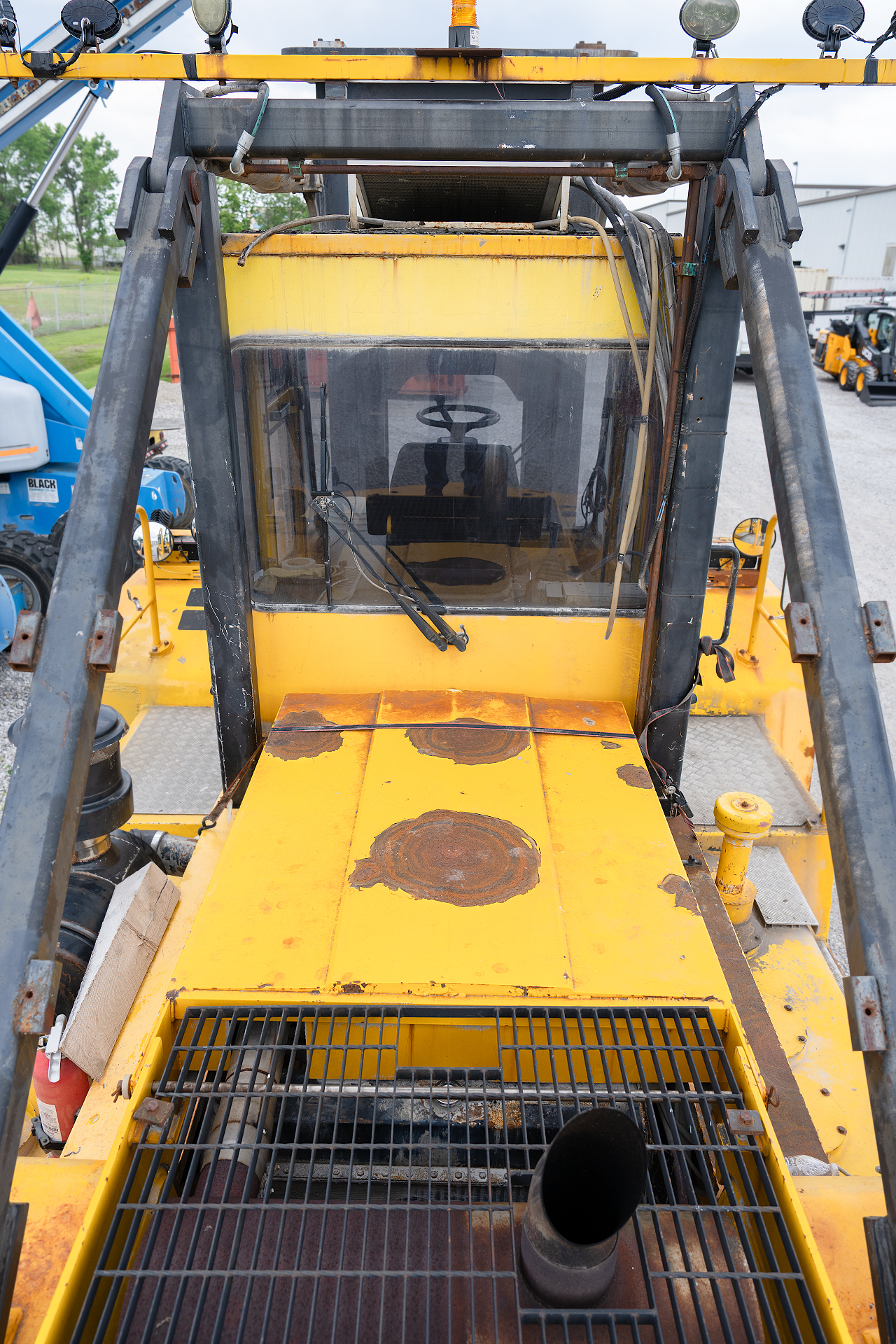

• OPERATOR’S CABIN:
  • Fully enclosed cabin with no roof glass
  • Luxury Suspension seat with seat belt
  • Adjustable steering column for height and tilt
  • Joystick controls for lift & tilt functions
  • Button operation for auxiliary hydraulic functions
  • IQAN “Omega Data Monitoring” incorporating;
    • Engine management
    • Transmission management
    • Hydraulic function system performance
    • Overall system protection
    • Lift cut out protection
    • Safe travel mode protection
    • CAN BUS Control
  • Engine protection system & Audio visual warning systems
  • Engine, transmission and hydraulic pressure display.
  • 2 x external mirrors and 1 x internal mirror.
  • Wipers and washers – front, rear and roof
  • Full Light package includes work lights turn, stop, tail,
  • Amber Strobe & Rev alarm.
  • Engine protection system & Audio visual warning systems
  • Includes emergency exit to reduce risk.
  • Cab positioned for improved visibility & ergonomics
  • Guard rails providing three points of contact at all levels
• EQUIPMENT INCLUDED:
  • Centralized lube on mast and steer axle pivot points
  • Gas strut assisted hoods and bonnets
  • Test ports for hydraulic system pressure checks
  • Sight gauge on Hydraulic tank

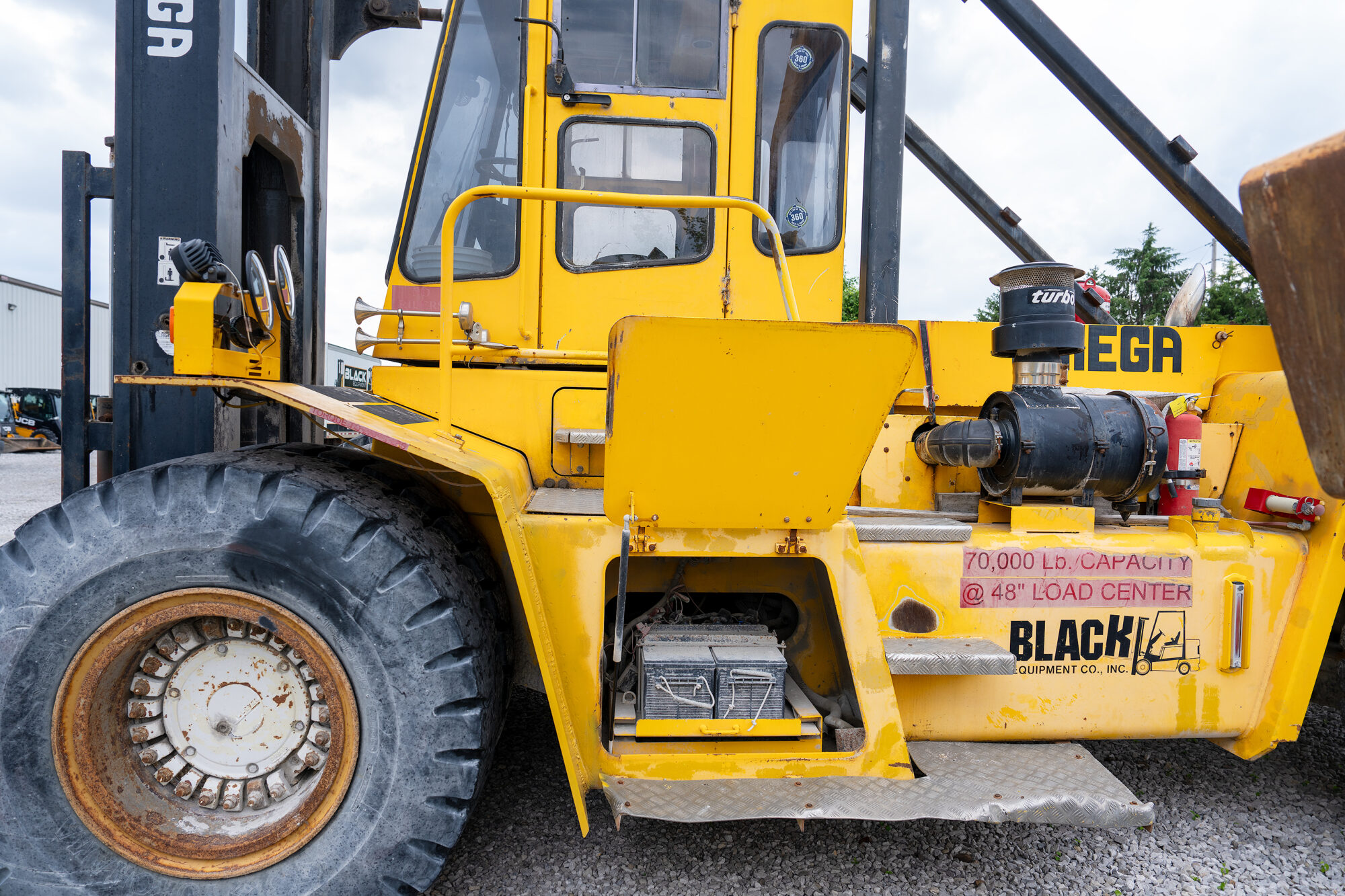

  • Battery Isolator

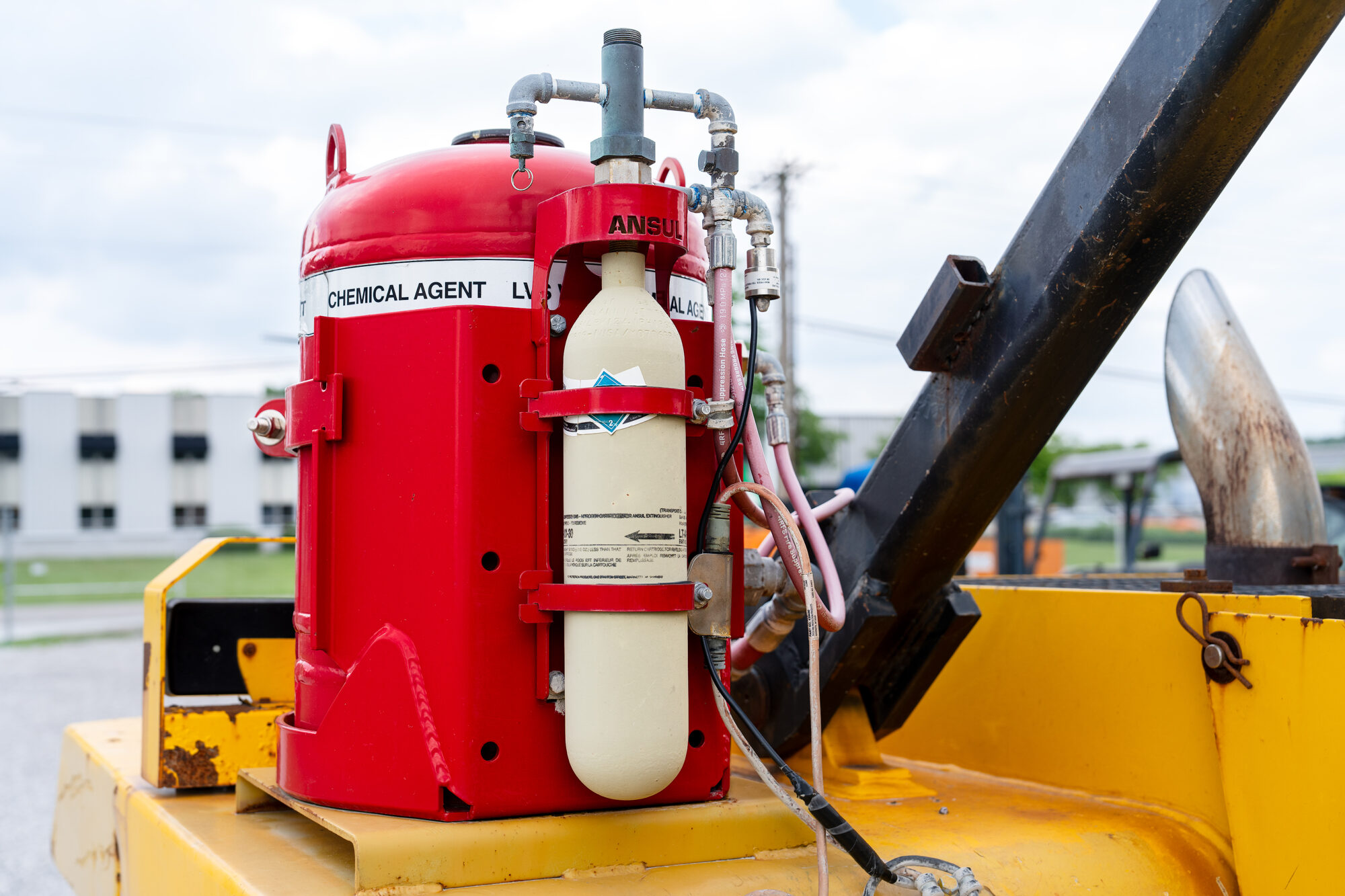

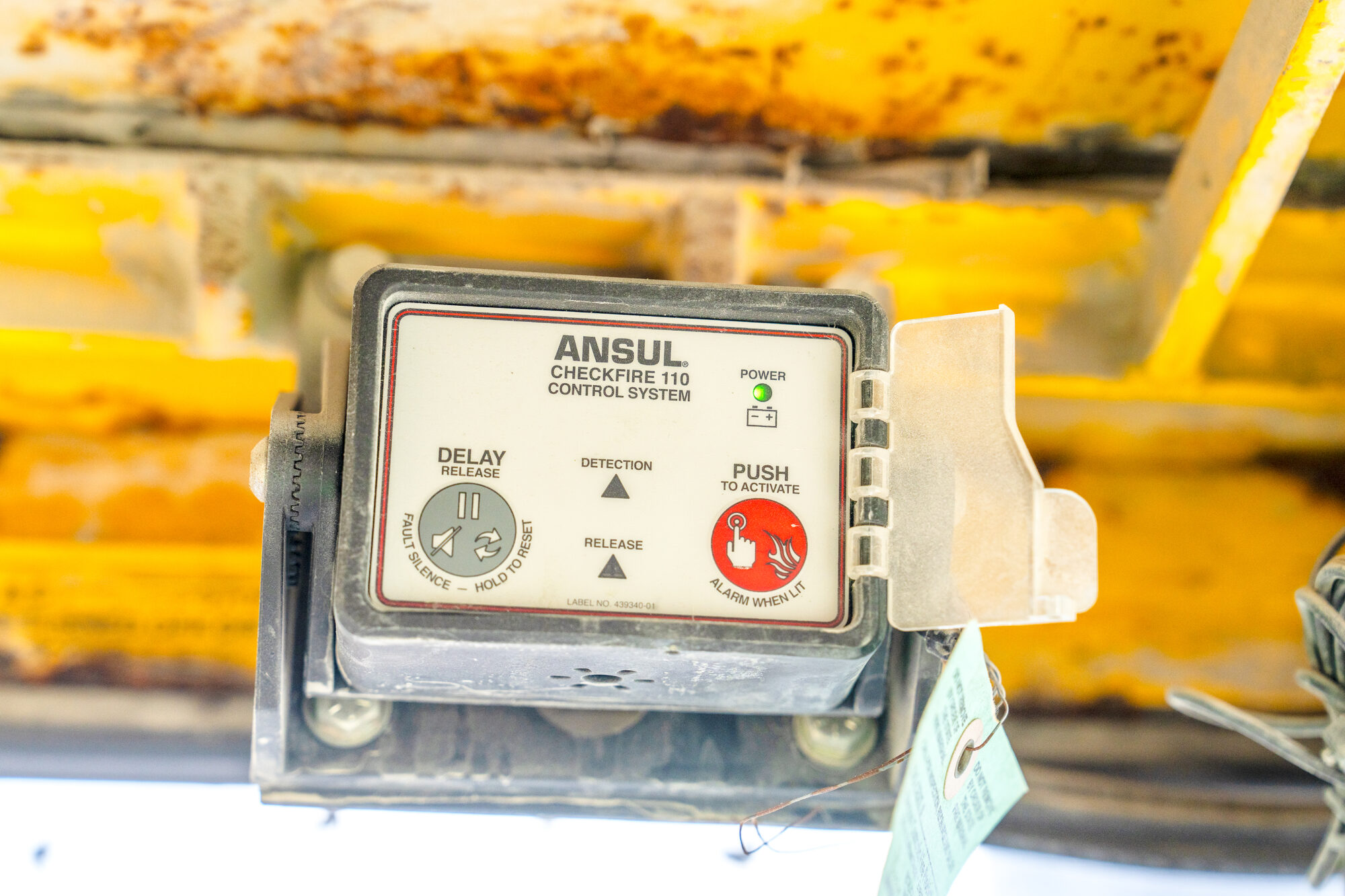

  • Fire Extinguisher
  • Hi Visibility striping
  • Emergency stop button
