TZ-34/20
Equipment type:
Aerial Work Platforms

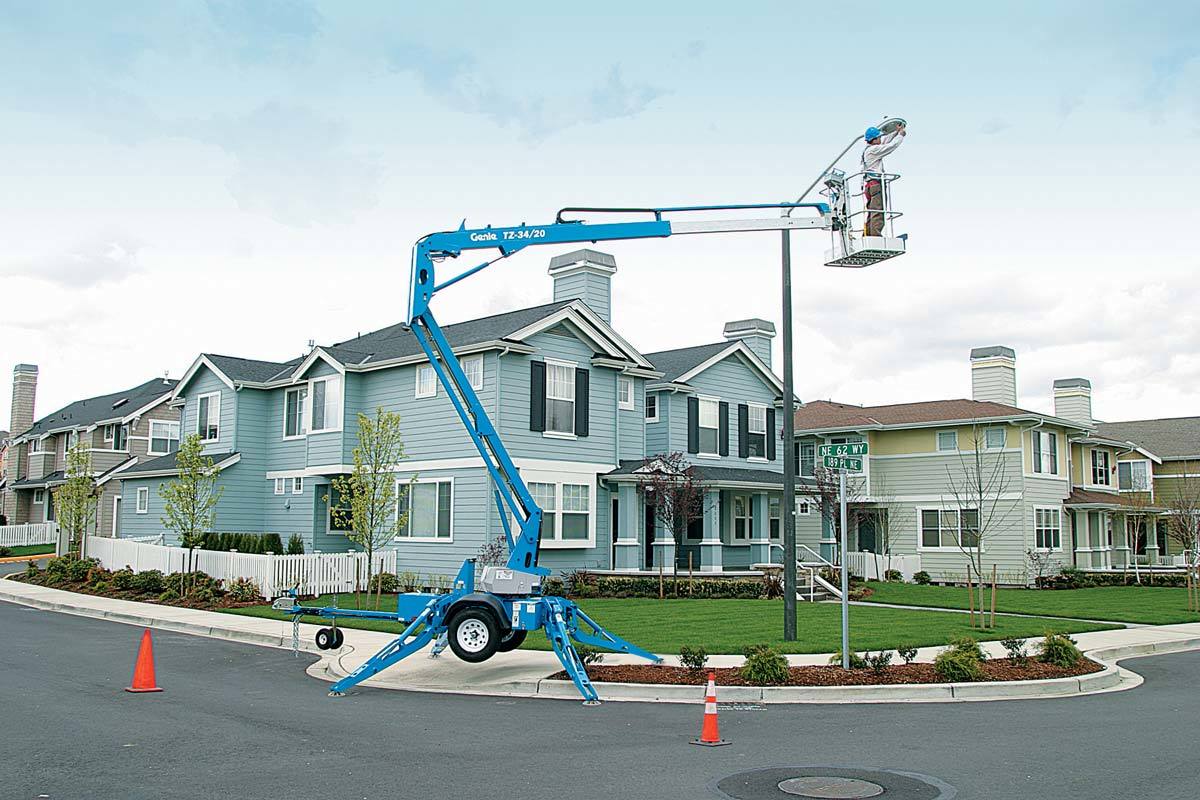

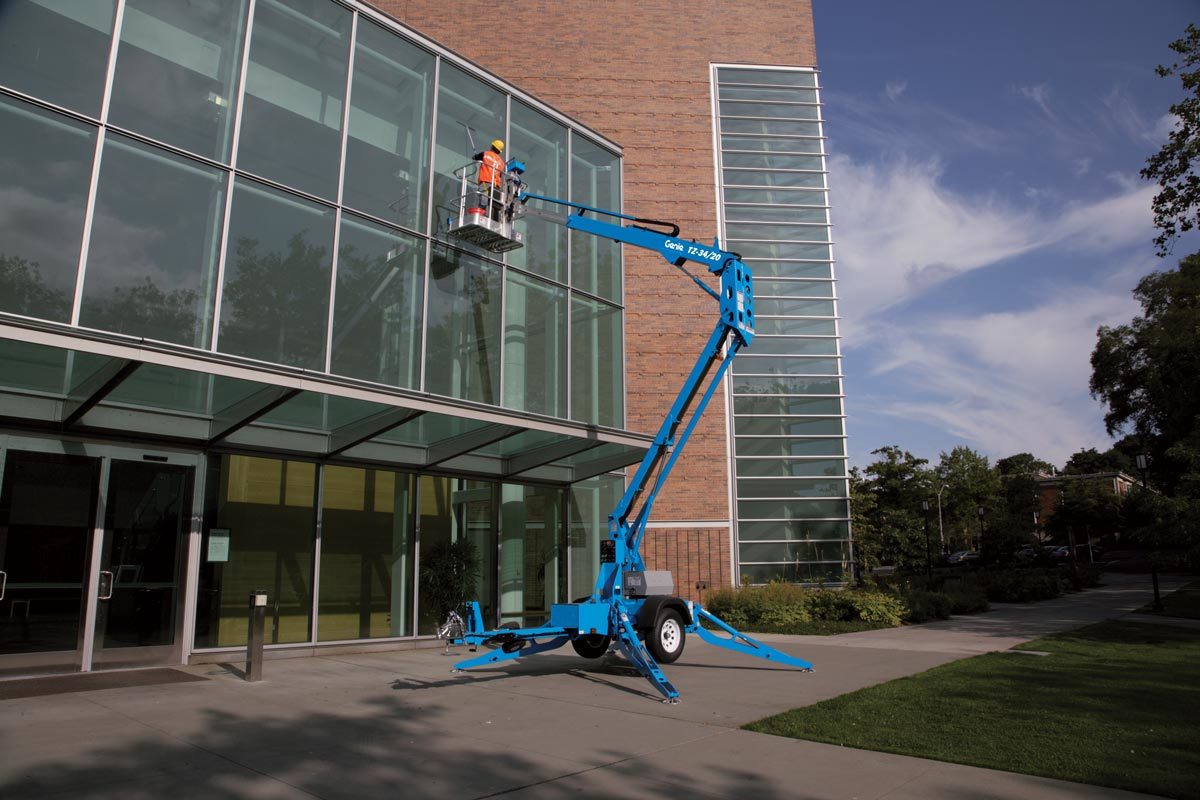

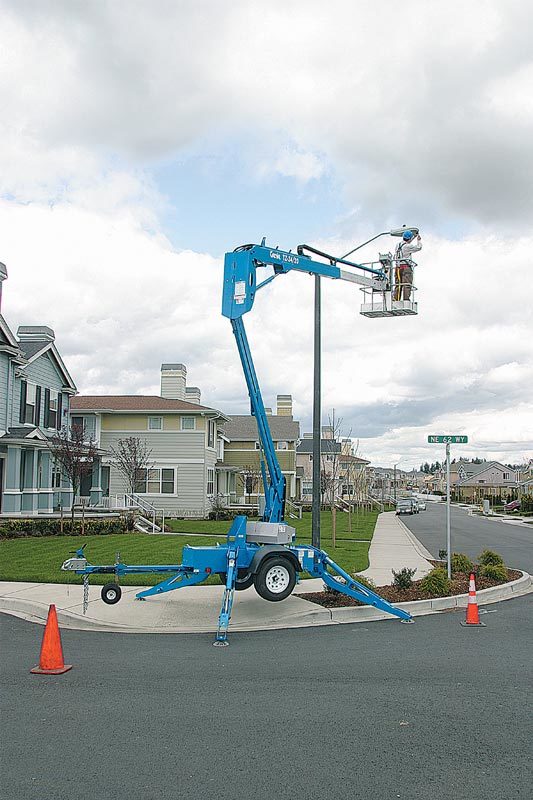

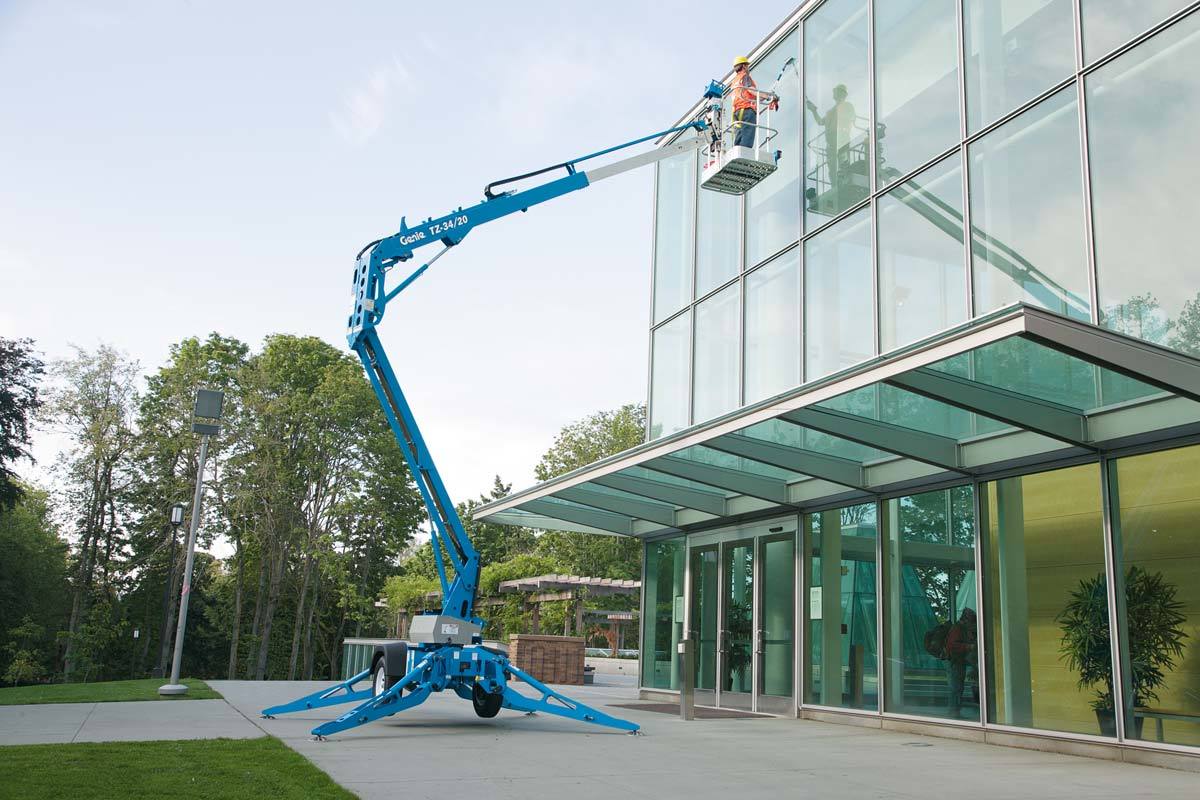

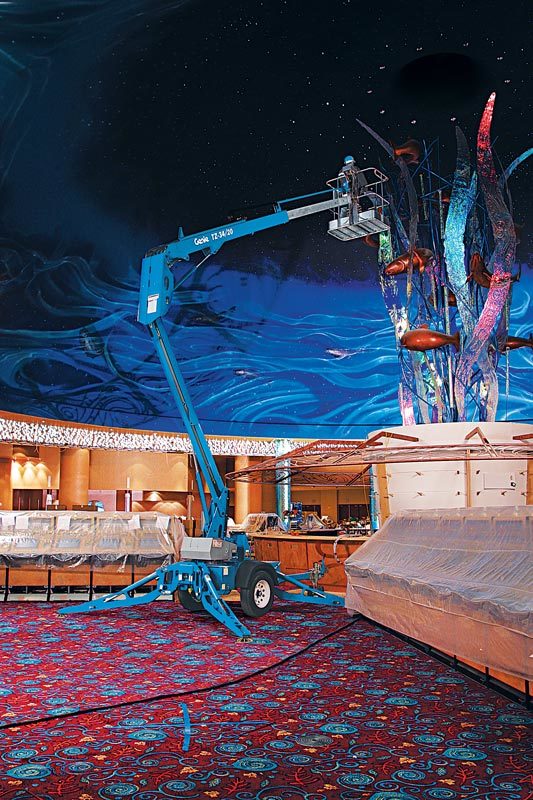

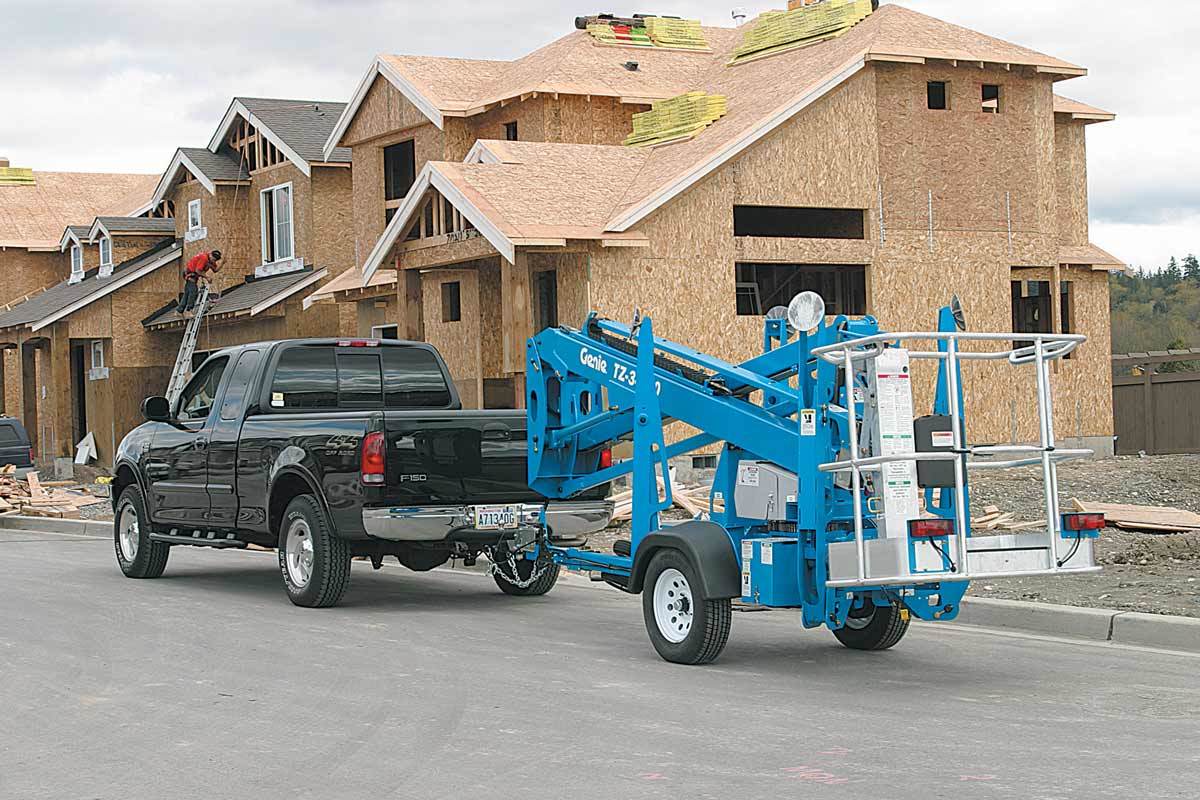

The Genie® TZ™-34/20 trailer-mounted boom has an outstanding working envelope and intuitive controls, allowing operators to efficiently reach where they need to be.
General
Manufacturer: Genie
Model(s): TZ-34/20
Dimensions
Platform Capacity: 500 lbs | 227 kg
Weight: 3,155 lbs | 1,431 kg

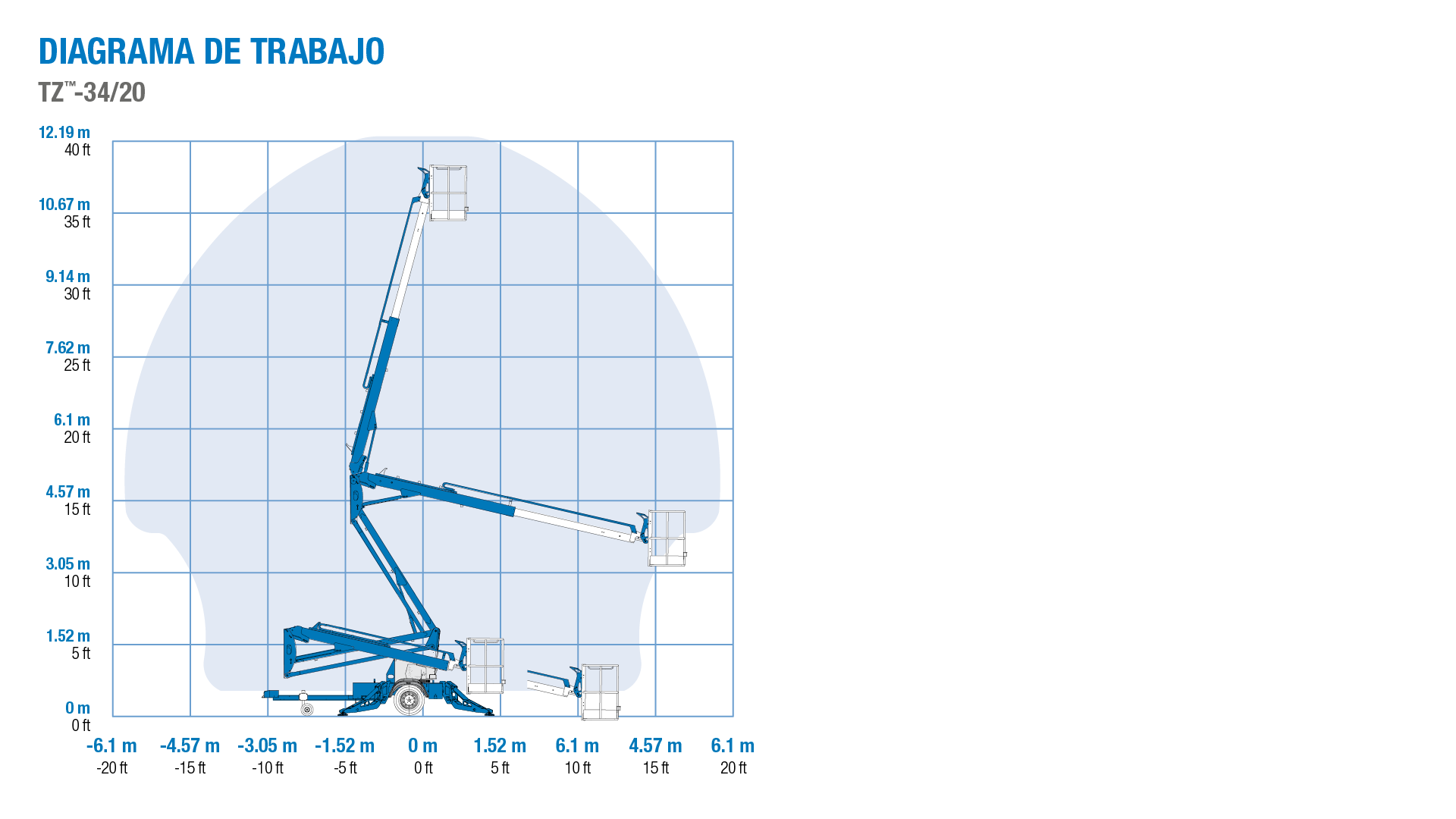

Working Height: 40 ft | 12.19 m
Engine
Operational
Features
- 359˚ non-continuous turntable rotation for versatile positioning
- Extension boom with self-leveling platform and dual pneumatic jockey wheels for safe, precise setup
- Rugged and heavy-duty, yet lightWeight enough to use on lawns, slate and gymnasium floors, as well as other sensitive surfaces.
- Variable-Speed control system
Options
- 2 1/2 inch (6.53 cm) I.D. pintle ring coupler
- 2 5/16 inch ball coupler (lever lock or Bulldog™)
- 2 inch ball coupler (lever lock or Bulldog™)
- 90 degree manual platform rotation
- Battery charge indicator (BCI)
- Chassis Options
- Clevis coupler
- Dual 10 inch air filled tires
- Flashing beacon
- Fluorescent tube caddy
- Hitch Options
- Horn
- Lift/Turntable Options
- Non-marking outrigger foot pads
- Platform Options
- Spare tire
- Tongue Jack
- Tool tray
- Wheel chocks
