S-60 HF

Equipment type:

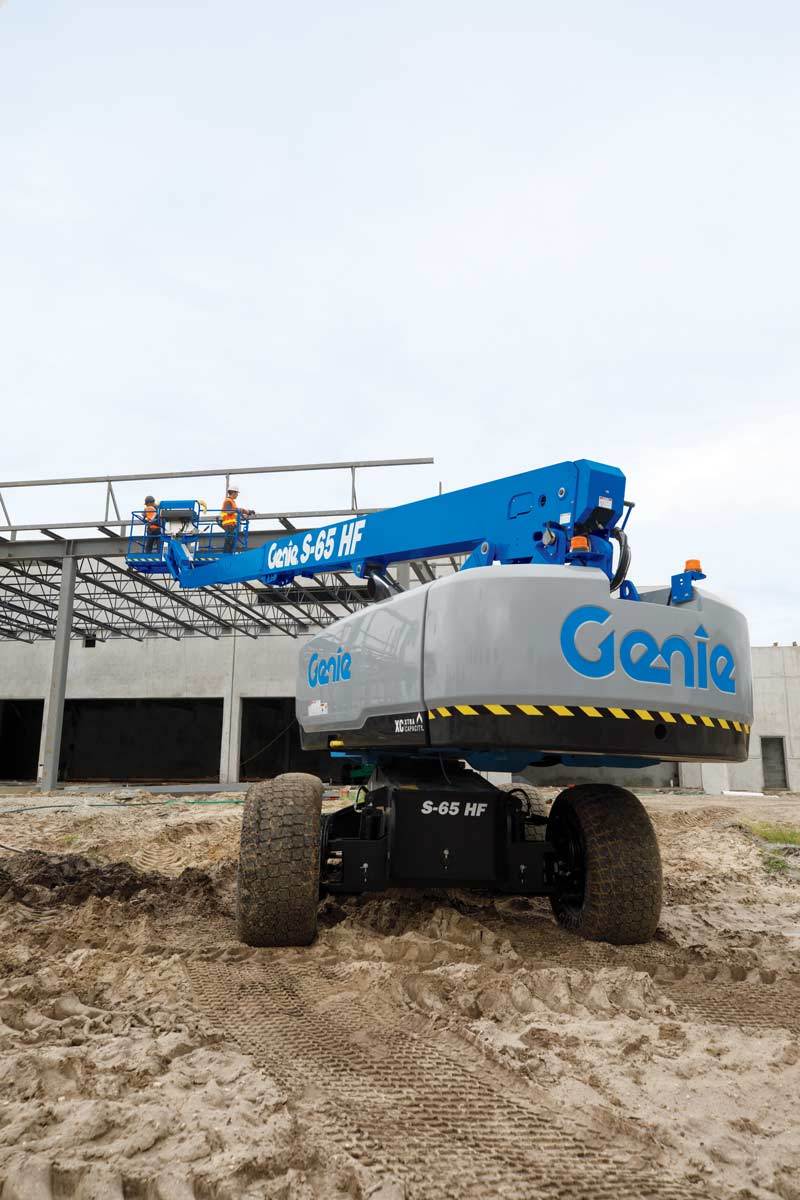

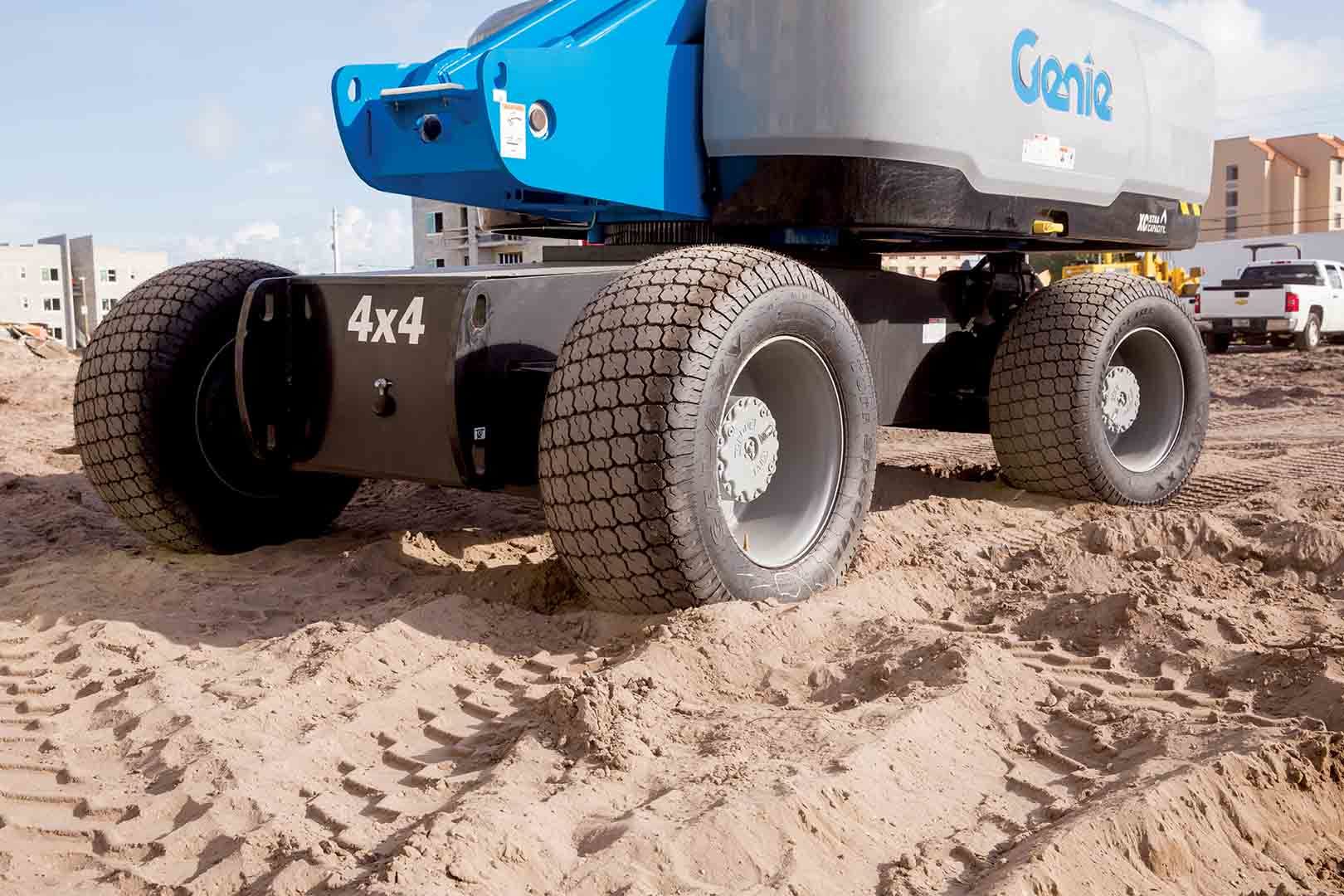

The Genie® S®-60 HF and S-65 HF high float telescopic booms are designed to perform heavy-Lifting tasks in sensitive turf conditions, such as sand and turf ground conditions. Engineered to “float” on soft or delicate surfaces, the Genie S-60 and S-65 HF booms protect softer surfaces during operation that could be damaged by the more aggressive tread on regular rough terrain tires.


Manufacturer: Genie
Model(s): S-60 HF

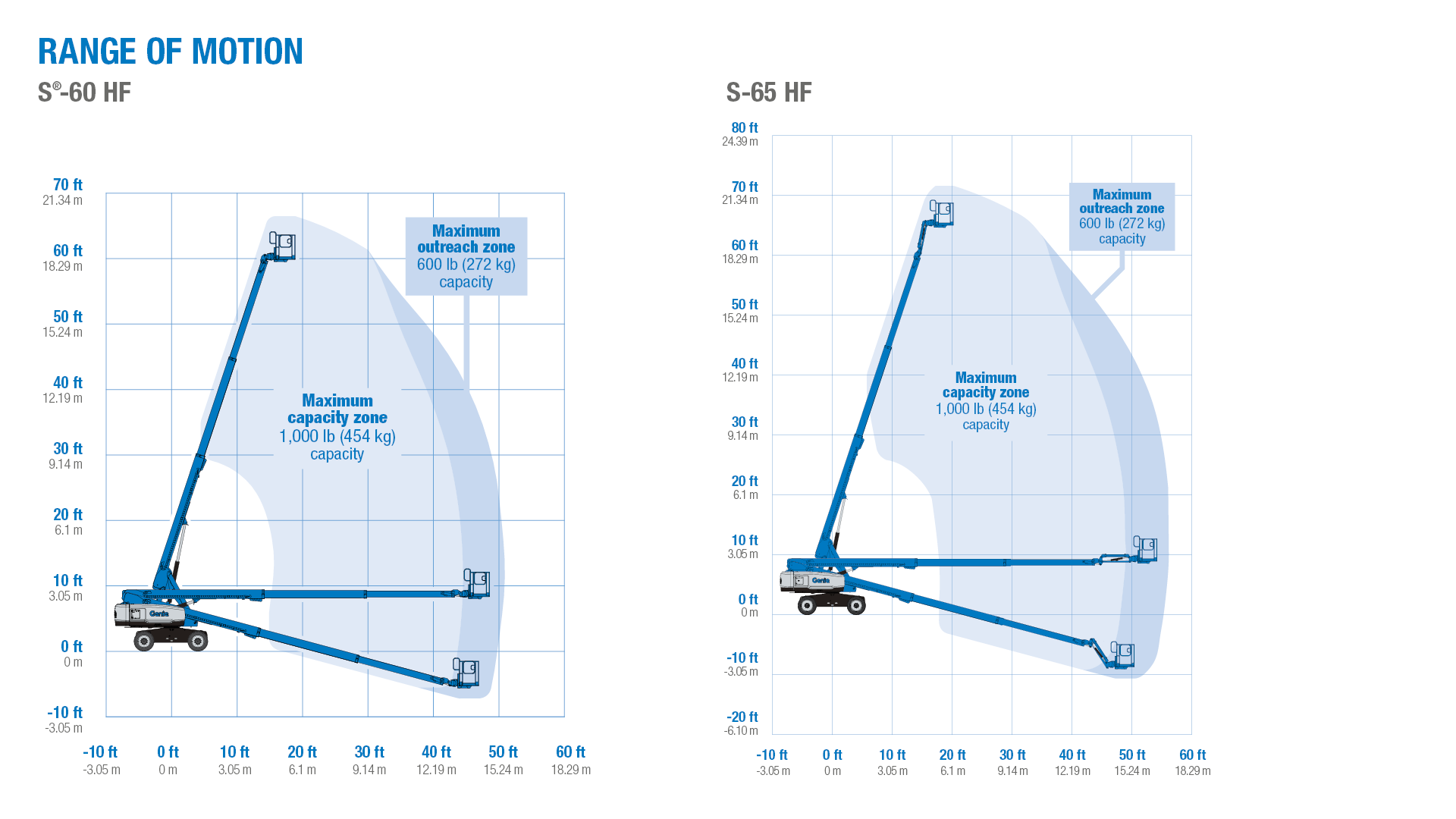

Below Ground Reach: 4 ft 5 in(1.34 m)
Machine Width And Length: 8 ft 5 in, 28 ft 7 in(2.55 m, 8.71 m)
Max Horizontal Reach: 46 ft 7 in(14.21 m)
Platform Capacity: 600 lbs | 272 kg
Working Height: 66 ft 2 in(20.33 m)




  • 160˚ platform rotation and 360˚ continuous rotation turntable for quick, precision positioning
  • 22,224 lb (10,081 kg) on the Genie S-60 HF model
  • 45% gradeability (stowed) for driving on slopes
  • 4WD and positive traction drive maintains equal power to all drive wheels
  • A virtual pivot primary boom that aligns the machine’s center of gravity for lower machine Weight
  • This new generation of Genie HF booms retain the productivity features that enhance customers’ ability to get work done quickly, including:
