GS-3246 E-Drive

Equipment type:

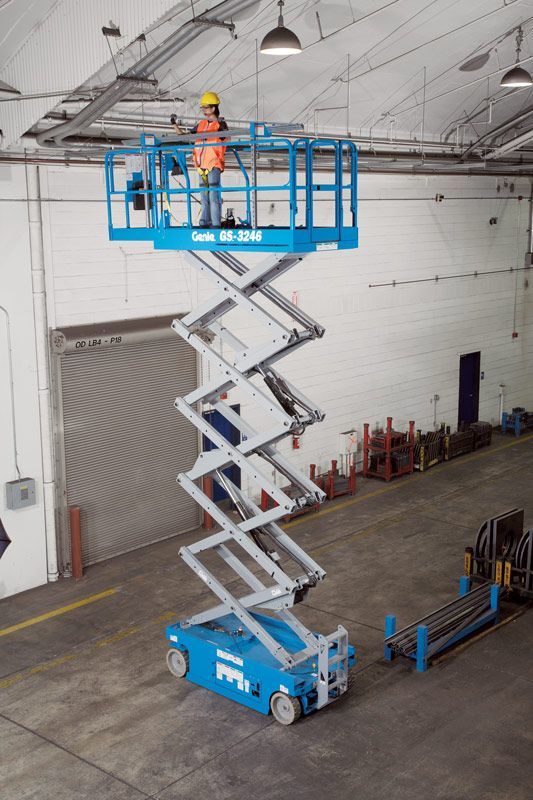

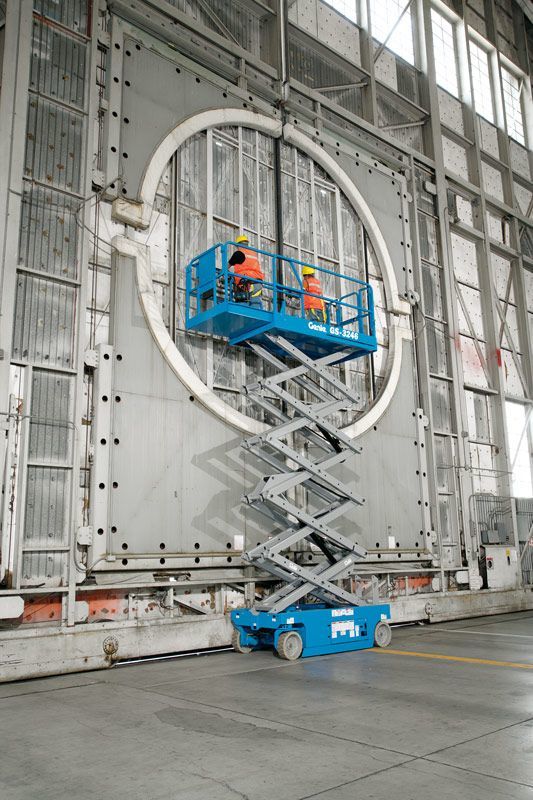

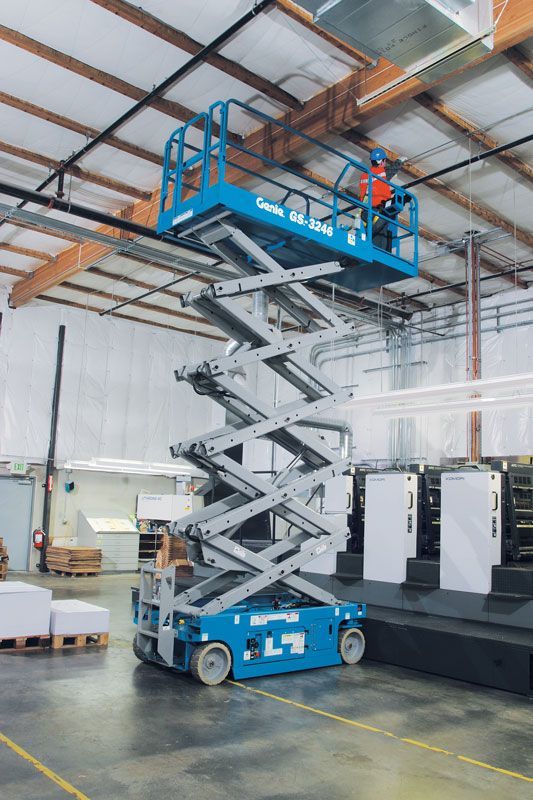

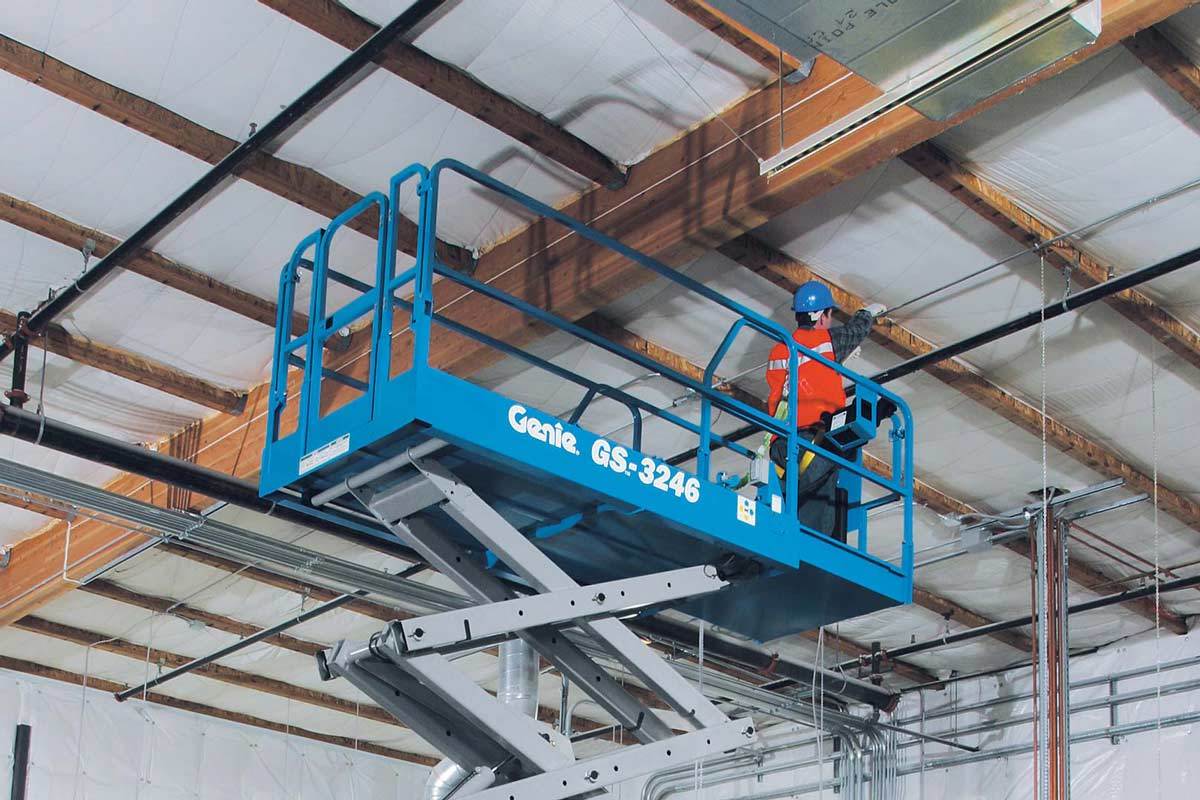

Compact dimensions and zero inside turning radius make the Genie® GS™-3246 E-Drive slab scissor Lift ideal for indoor and outdoor construction, maintenance, and installation tasks on level ground and in tight spaces. Boasting the state-of-the-art Genie AC electric E-Drive system, it offers unmatched efficiency and runtime when a significant amount of driving is required.

General

Manufacturer: Genie
Model(s): GS-3246 E-Drive

Dimensions

Machine Length: 8 ft | 2.44 m
Machine Width: 3 ft 10 in | 1.16 m
Platform Capacity: 700 lbs | 318 kg
Weight: 5,218 lbs | 2,367 kg
Working Height: 38 ft 1 in | 11.78 m

Engine

Operational

Features

  • 25% gradeability with 14° breakover angle to easily get up slopes and loading ramps
  • Easy to maneuver in tight spaces and to drive through Standard double doors
  • Large platform workspace with 36 in (0.91 m) roll-out platform extension
  • Powerful AC electric drive motors for unmatched driving performance and industry-leading runtime per battery charge
  • Quiet, zero-emission electric operation
  • Swing out components trays for easy access
  • User-friendly Smart Link™ dual-zone controls for indoor and outdoor use

Options

  • AGM maintenance-free batteries
  • Air line to platform: ? in inner diameter
  • Automotive-style horn
  • Biodegradable hydraulic oil
  • Biodegradable hydraulic oil(for GS-3232, GS-3246)
  • Certification Options
  • Chassis Options
  • EE Certification
  • Lithium-Ion Battery
  • Platform Options
  • Power inverter, 800W, 24V DC, 120V AC, 60 Hz
