Equipment type:

Low Level Order Pickers

The dual technology combi-controller and AC traction motor increase energy efficiency and ensure that full capacity loads can be moved without an increase in energy consumption. This lift truck series can be tailored to your operation and designed to address the challenges of today’s ever-changing business climate. The low-level order picker leverages the capabilities of a conventional pick vehicle with the speed and efficiency of a pallet truck. The operator can easily access the 6-10 foot strike zone with increased safety and less effort.

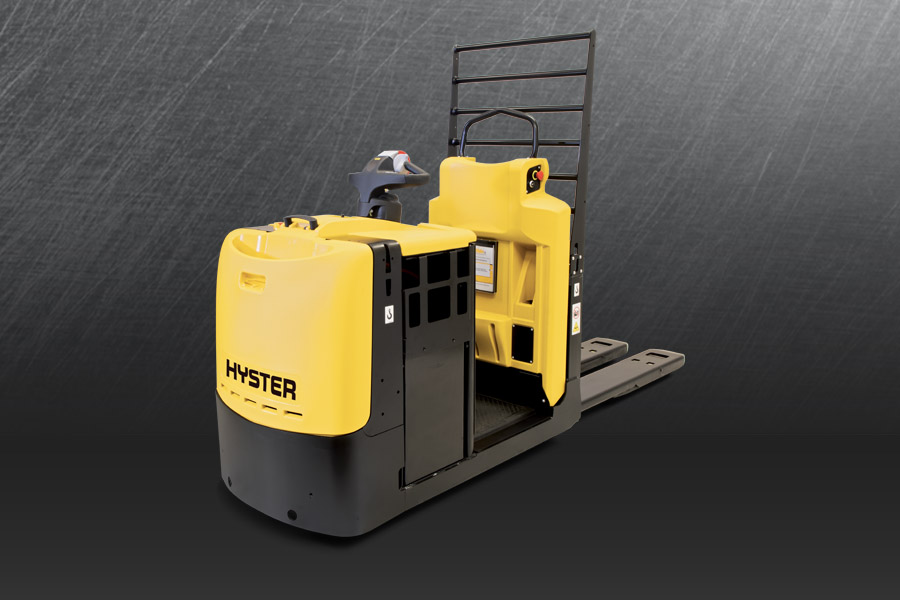

The LO55-80 order picker can all but eliminate the need for a merge process. Efficient picking from multiple zones across a large warehouse often requires a pallet truck and high-level order picker. By slotting fast movers in the 0–6.5 foot range and dedicating the 6.5-10 foot range to slow movers and storage, the operation can be maximized for revenue per cubic foot and replenishment penalties can be minimized.

The LO55-80 series is specifically designed to help picking operators enjoy a reduction in fatigue and increase in efficiency. Intelligently engineered features reduce operational effort and the distance the operator has to reach when picking from rack to pallet, increasing efficiency and reducing fatigue.

POWER STEERING: Finger-tip control with power steering reduces the arm movement required to change direction while the design also allows the operator to remain within the footprint of the truck at all times for greater personal protection.

OPERATOR COMPARTMENT: The suspended platform area helps to increase operator comfort and allows easier pass through to optimize picking from both sides of the truck. The operator sensing floor mat covers the entire platform area to detect when the operator is on board. The optional lifting platform is foot controlled to facilitate ground and second level picking, reducing the distance the operator has to reach when picking from rack to pallet. This reduces fatigue and allows the operator to lift and lower hands free after second level picking.

CONTROL HANDLE: The optimized ergonomics of the control handle reduces arm movement required to change direction, allowing the operator to remain within the truck footprint at all times for protection as well as helping to reduce operator fatigue and increase productivity. The wraparound design keeps the operator’s hands within the interior perimeter of the handle and the large control buttons are conveniently positioned reducing fatigue and repetitive movement.

  • Heavy duty frame for maximum strength
  • O-ring face seals help eliminate leaks
  • Sealed connectors on critical connections
  • Robust pull rod design of load wheel axle ensures long term reliability


Model(s): LO55, LO80, LO60
Capacity: 5500-8000lbs
Load Weight: 8000lbs
Max Lift Height: 4.7
Environment: Indoor
Power: Electric
Primary Task: Lifting and Stacking, Order Picking


Capacity: 5500-8000lbs
Max Lift Height: 4.7




  • Productivity
  • Ergonomics
  • Durable Design
